034Motorsport X-Clear Driveshaft Tunnel Brace (MQB)

034Motorsport

  • $ 112.50
  • Save $ 1250
Finance for as low as $/week with Snap Logo Learn More


034 > IE

This X-Clear Driveshaft Tunnel Brace is designed for FWD MQB and MQB Evo Vehicles

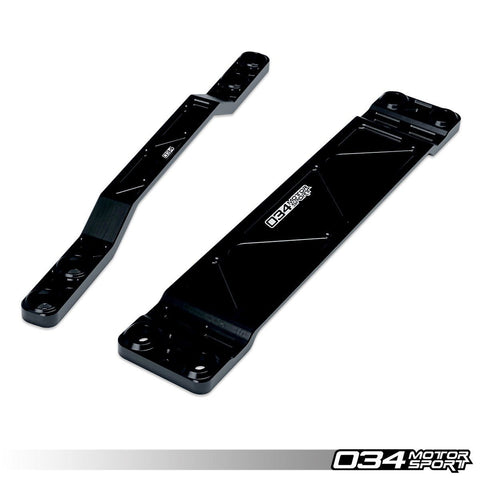

FWD: Includes Both Front & Rear Braces.

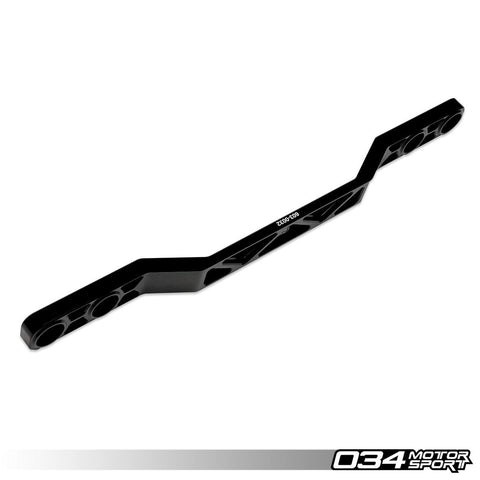

AWD: Includes Rear Brace. Front Brace is the Driveshaft Carrier.

PRODUCT DESCRIPTION:

The X-Clear Driveshaft Tunnel Brace is designed to increase clearance for aftermarket exhausts by replacing the shallow-fitting OEM tunnel brace. This allows for a larger diameter exhaust to be installed without causing excessive rattling or vibration.

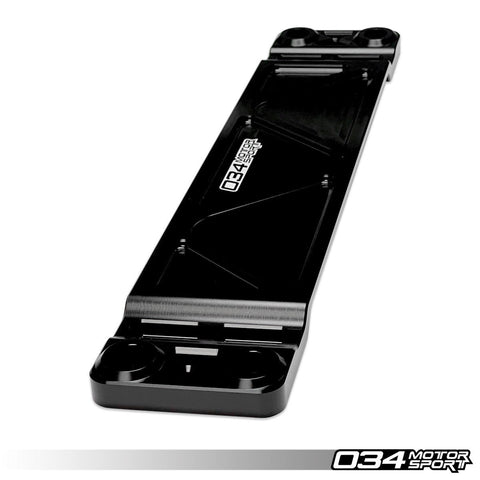

The X-Clear Driveshaft Tunnel Brace replaces the factory brace with a CNC Machined Billet 6061-T6 Aluminum brace designed to increase exhaust clearance by 8mm over the factory.

FEATURES:

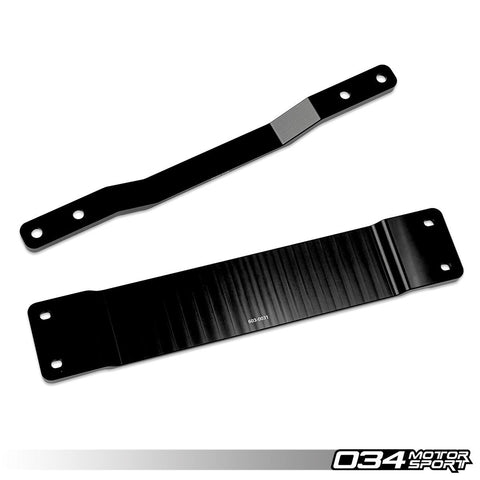

  • Increased Stiffness Over OE Stamped Steel Part
  • CNC Machined from Billet 6061-T6 Aluminum

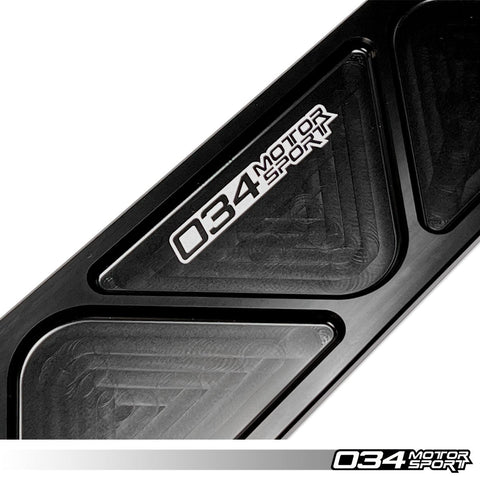

  • Bright Black Anodizing, with Laser Etched 034Motorsport Logo
  • Adds 8mm of Additional Clearance to Exhaust Compared to the OE Part, Allowing Larger Diameter (up to ½” diameter larger) Aftermarket Exhaust Installation
  • Fast, Easy Installation
  • No Added NVH

WHAT’S INCLUDED:

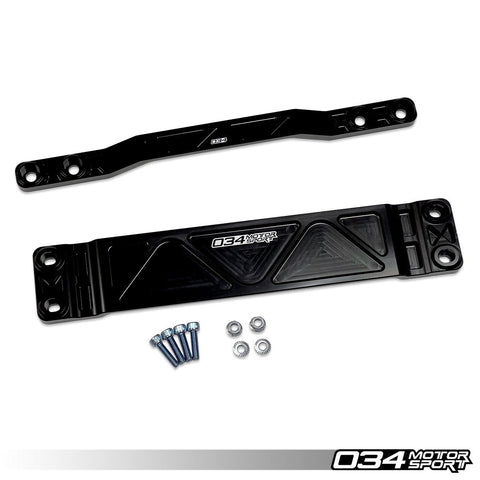

  • Billet Tunnel Brace
  • Mounting Hardware

OE PART INTERCHANGE:

  • 5Q0 804 421 B
  • 5Q0 802 128

FWD Fitment:
Make Model Years Chassis Engine
Audi A3 2015-2016 8V 1.8 TFSI
Audi A3 2015-2016 8V 2.0 TDI
Audi A3 2015-2020 8V/8V.5 2.0 TFSI
Audi A3 2022-Present 8Y 2.0 TFSI
VW Golf 2015-2020 Mk7/Mk7.5 1.8T Gen3
VW Golf 2015-2016 Mk7 2.0 TDI
VW Golf SportWagen 2015-2020 Mk7/Mk7.5 1.8T Gen3
VW GTI 2015-2020 Mk7/7.5 2.0T Gen3
VW GTI 2021-Present Mk8

2.0T Gen4




AWD Fitment:
Make Model Years Chassis Engine
Audi S3 2015-2020 8V/8V.5 2.0 TFSI
Audi S3 2022-Present 8Y 2.0 TFSI
VW Golf Alltrack 2015-2020 Mk7/Mk7.5 1.8T Gen3
VW Golf R 2015-2019 Mk7/Mk7.5 2.0 TSI Gen 3
VW Golf R 2021-Present Mk8 2.0T Gen4
