034Motorsport 2.0T HPFP Conversion Kit - VW/Audi MQB 1.8T

Product Description:

Audi MLB 2.0T B9 A4/A5/Q5 and Volkswagen Golf/Alltrack/Sportwagen 1.8T vehicles come with a weak-performing, sealed HPFP unit from the factory and a vacuum pump that can’t accept High-Pressure Fuel Pump upgrades from their higher-performing MQB 2.0T siblings. We solve these deficiencies with the introduction of our Assembled High-Pressure Fuel Pump Upgrade & Vacuum Pump Kit!

OEM Vacuum Pump Retrofit

• Audi MLB 2.0T B9 A4/A5/Q5 and Volkswagen Golf/Alltrack/Sportwagen 1.8T vehicles come with their own vacuum pump that does not allow for more common MQB 2.0T fueling options to be used. Luckily, the OEM MQB 2.0T vacuum pump can easily be retrofitted to these vehicles and allows for fuel pump upgrades like the 034Motorsport Assembled High Pressure Fuel Pump upgrade to be used. This ability opens the floodgates for large fueling system upgrades that meet the demands of ethanol race fuel, pump gas, and upgraded turbocharger applications.

Assembled High Pressure Fuel Pump Upgrade

• Audi MLB 2.0T B9 A4/A5/Q5 and Volkswagen Golf/Alltrack/Sportwagen 1.8T vehicles come with a weak-performing, sealed HPFP unit from the factory and often do provide enough headroom for tuners to push more power, namely with the addition of ethanol tuning. With the OEM Vacuum Pump retrofit, you can directly swap MQB 2.0T fueling components like our 034Motorsport Assembled High-Pressure Fuel Pump Upgrade and receive all the benefits of increased fueling capacity.
• Our Assembled High Pressure Fuel Pump & Vacuum Pump Upgrade Kit is designed and engineered to increase fueling capacity for Audi 2.0T MLB and Volkswagen 1.8T MQB EA888 Gen 3 engines, delivering up to 68.6% more flow compared to stock 1.8T/2.0T MLB fuel pumps. This pump features the largest piston diameter on the market. It supports E85, optimized tunes, and turbo upgrades.
• The 034Motorsport Assembled High-Pressure Fuel Pump Upgrade is a new drop-in OEM VAG Hitachi Fuel Pump that comes with the 034Motorsport High Pressure Fuel Pump Piston Upgrade Kit pre-installed, making it a plug-and-play upgrade. Utilizing the same manufacturers that produce the OEM High-Pressure Fuel Pumps that are used by automakers themselves, 034Motorsport can guarantee the same level of quality and precision from OEM components, all while offering significant performance improvements to support high-horsepower applications.

Audi B9 2.0T MLB and VW MQB 1.8T vehicles will be able to take advantage of the increased fueling headroom with our E85 software!

Fuel Pump Features:

• OE VAG (Hitachi) Pump with 034-106-6057 Piston Upgrade Kit Pre-Installed and QC’d.
• Flow Increase Over Factory High Pressure Fuel Pump:
• 38.6% Increase Over Stock 2.0T Pump
• 68.6% Increase Over Stock 1.8T Pump
• Increased Piston Diameter:
  • Stock 1.8T Pump: 9.00mm
  • Stock 2.0T Pump: 9.92mm
  • 034Motorsport Pump: 11.70mm (Largest on the Market)
• Increased Stroke Volume:
• Stock 1.8T Pump: 191mm³
• Stock 2.0T Pump: 232mm³
• 034Motorsport Pump: 322mm³
• Increased Fuel Pressure:
• Stock Pump: 200 bar (2,900psi)
• 034Motorsport Pump: Over 240 bar (3,480psi).
• Highest Flowing Pump On the Market
• Raises the Factory Fueling Limits Present in the EA888 Gen3 Engines
• Increased Flow To Meet The Demands of Optimized Tunes for E85 and/or Turbo Upgrades.
• Required for Most Stage 1 E85 Performance Software
• Complete Pump Assembly
• High-Precision Machined, Aerospace Tolerance, Fuel Pump Internals
• DLC Coated Piston and Cylinder for Reduced Friction and Increased Performance
• Relatively Easy Installation
• OEM Vacuum Pump from EA888.3 2.0T (transverse)
• Includes an OEM Replacement Gasket
• Genuine VW Parts
• Direct Replacement

Part Number Interchange:

• Audi B9 2.0T:
• Fuel pump PN: 06K 127 028 B
• Vacuum pump PN: 06K 145 100 P
• VW 1.8T (EA888.3)
  • Fuel pump PN: 06A 127 026 H
  • Vacuum pump PN: 06K 145 100 BB

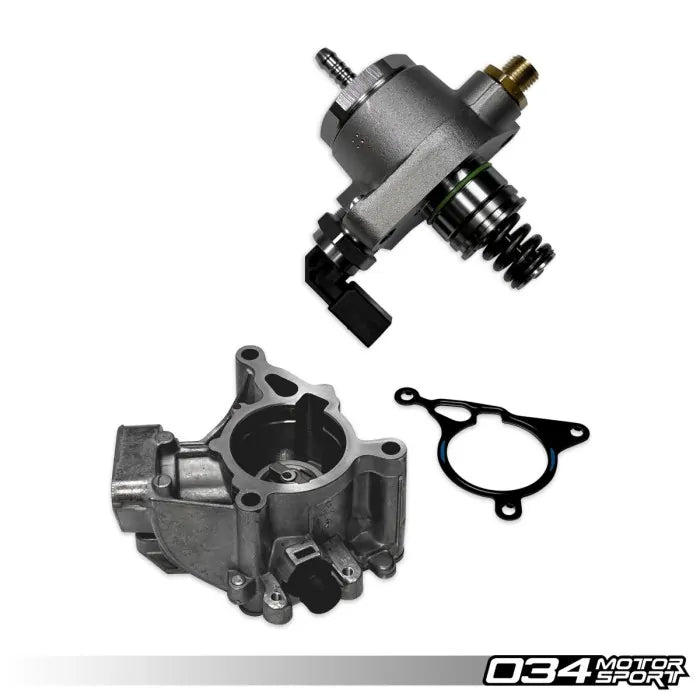

What’s Included:

• 1x) 034Motorsport High Pressure Fuel Pump (034-106-6065)
• 1x) OEM Vacuum Pump (06L 145 100 K or M)
• 1x) OEM Vacuum Pump Gasket (06H 103 121 J)
• 2x) VAG-N91128701 (M6x35)
• 3x) VAG-N10739401 (M6x70)
