Blaze Performance AToM V2 Intake System - VW/Audi MQB 1.8T/2.0T
Description
Description
Upgrades from certain intakes may necessitate revision to boost strategy. Please submit a datalog to your calibrator for review to ensure tune optimization.
Vehicle Fitment
- VW Golf 7 & 7.5 GTI & Clubsport, Golf R, GLI
- Passat 2.0 TSI B8 2015+ VW Arteon 2.0 TSI 2017+, Tiguan (2nd Gen)
- Audi: A3 2.0 TSI 2013+ 8V, S3 2013+ 8V, Audi TT 2.0 TSI (8S)
- *Fitment Note: Due to the large ducting to scoop maximum amounts of air, certain aftermarket hoods that have center vents may have clearance issues. We recommend checking out Vaarticus' install video as a reference for clearance.
Installation

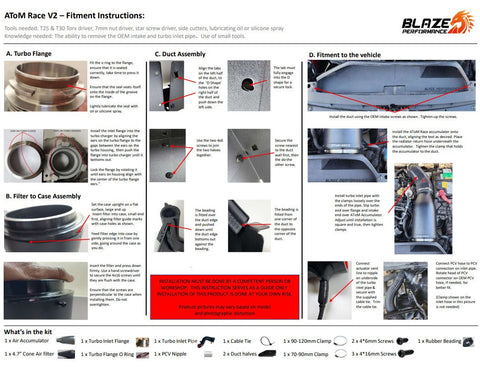

For Installation instructions click HERE
Cleaning Instructions
For filter cleaning instructions, check out our FAQ
Blaze Atom v2 Intake System
The Blaze Atom v2 Intake System is a high-performance solution specifically built for MQB 1.8T and 2.0T engines. This intake system is designed to deliver unparalleled airflow and significant power gains, making it an essential upgrade for performance enthusiasts.
Key components such as the 4-Ply Steel Reinforced Turbo Inlet Pipe and the full-width cowl ensure durability, efficient heat management, and smooth, unrestricted airflow. These high-quality parts are engineered for easy installation, offering a precise fit with stock turbo setups, ensuring that the system not only performs exceptionally but integrates seamlessly with your vehicle.
Why Choose Blaze?
Improved Airflow:
Proven during testing, the Blaze AToM v2 consistently outperforms competitor intake systems when paired with turbochargers requiring additional airflow. The results in lower wastegate duty allow for higher peak power with additional tuning.
Boost Pressure & Temperature Control:
With improved airflow from the Blaze intake system, reduction in wastegate duty cycle and charge air temperatures allow for increase of efficiency from the turbocharger.
Higher Boost Levels:
With improved turbocharger efficiency, target pressures can be increased in cases where clients have reached the limits previously with more restrictive intake systems.
Engineered For Performance
Technical Specifications
Technical Specifications
Full-Width Air Deflector:
- Designed to optimize airflow into the engine for enhanced power output.
120mm Washable Cone Filter:
- Reverse-mounted and washable, providing a reusable and eco-friendly filter solution.

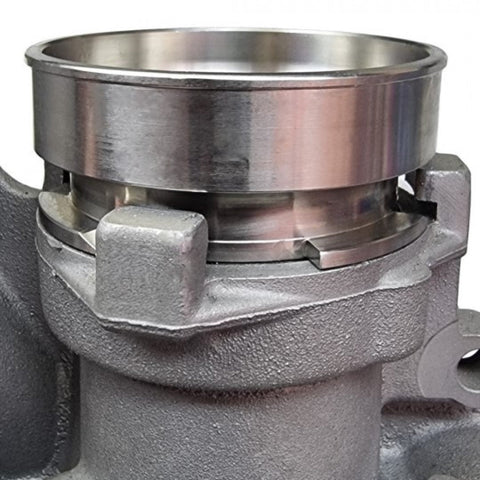

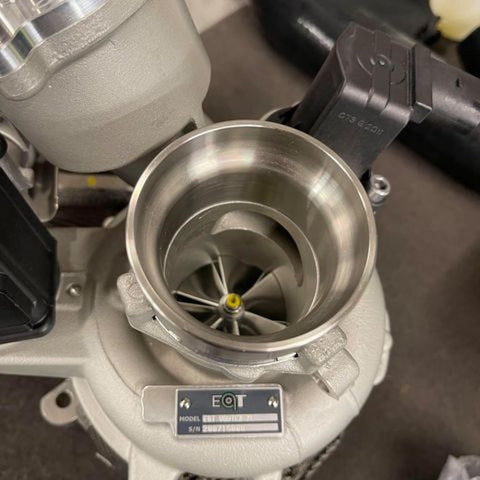

Turbo Inlet Flange:
- 74mm inside diameter at the neck and tapers down to 56mm to fit perfectly with any stock machined compressor cover.
- 56mm inside diameter with a Viton O-ring for a secure fit.
100mm (4") Case Outlet:
- Ensures high-volume airflow for improved engine performance.

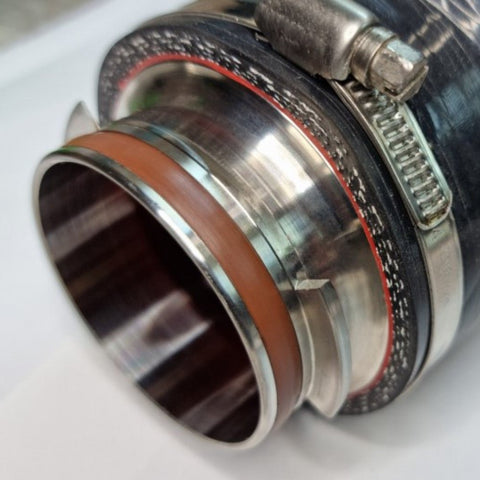

4-Ply Steel Reinforced Turbo Inlet Pipe:
- 100mm inlet diameter, 76mm outlet diameter for smooth airflow and increased durability.
160mm Air Accumulator / Heat Shield:
- Provides a controlled environment, protecting the intake air from engine heat and improving overall efficiency.
Rubber Seal:
- Ensures a tight fit to the hood, preventing air leakage and maximizing performance.
Full-Width Cowl:
- Designed to deliver optimum airflow into the intake system, boosting engine power.
Blaze Atom v2 Testing
Below you will find charts showing the waste gate duty cycle of the Blaze Atom v2 compared to competitor intakes.
