EQT Multi-Port Injection Kit (MPI) - VW/Audi MQB/e 1.8T/2.0T
Shipping rates and applicable discounts are applied during checkout.
- Black (Standard) / 980cc (Up to Vortex XL or Similar)
Couldn't load pickup availability
EQT Multi-Port Injection Kit (MPI) - VW/Audi MQB/e 1.8T/2.0T
Description
Description
The EQT Multi-Port Injection supplemental fueling kit is crucial for those looking to push high horsepower out of their MQB/MQBe EA888.3 or EA888.4 engine. Note: tuning is required for this MPI kit.
| T105 Connector | Wire Color Used | Function |
|---|---|---|
| 24 | Orange | MPI Inj #3 |
| 25 | Green | MPI Inj #1 |
| 45 | White | MPI Inj #4 |
| 46 | Yellow | MPI Inj #2 |
| 50 | Blue | Low Press Sensor |
| 71 | Gray | Ethanol Sensor |
Installation
Check out our install video for the EQT MPI kit
MQB Multi-Port Injection Fueling Solution
Introducing EQT's Multi-Port Injection supplemental fueling kit. When upgrading your EA888.3 equipped MQB car, the stock fueling becomes a limitation with increased demand. The factory direct injectors are a weak point, reaching saturation even on upgraded high pressure fuel pumps. By adding a second injector per cylinder into your North American Region intake manifold to accompany your direct injector, you gain all the fueling necessary to support any horsepower goal you have. Our in house manufactured and designed kit integrates seamlessly into your factory ECU to provide a factory-like fit and finish.
Custom and Staged Tune Support
On the MQB 2.0T platform, we now offer MPI-ready staged tunes! That's right, you no longer need a custom tune to get all of the great benefits of port-injection!
- More fueling headroom
- Carbon cleaning benefits
- future proofing your build for high-power applications!

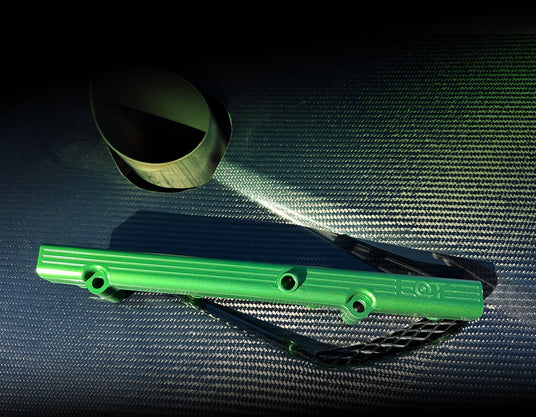

MPI V2 Rail
- Improved Fuel Rail Design: The fuel rail has been re-engineered to provide significantly better clearance between the cam cover and fuel line, ensuring easier installation and a cleaner engine bay layout.
- Optimized Low-Pressure Fuel Sensor Fitting: We’ve refined the low-pressure fuel sensor fitting to allow for greater compatibility with aftermarket intake manifolds. This update provides you with more flexibility when pairing your MPI Kit with performance-focused modifications.
- Enhanced Fitment for Aftermarket Builds: These revisions make our MPI Kit a top choice for enthusiasts running custom intake manifolds or unique setups.
MPI Kit Features
- Proprietary billet aluminum fuel rail made in house in the U.S.A.
- Every set of injectors is flow matched and balanced
- High end complete wiring harness with oil and heat resistant coverings
- Single fusible link for entire harness, no need for multiple fuse locations in factory fusebox
- Tooling included to convert non-MPI manifolds
- Easy factory-like ECU integration
- Ethanol content wiring is included into our harness (Sensor not included)
- OEM Bosch Rail Pressure sensor included
- Eliminates the need to clean intake valves
- 6° bias cut profile for camshaft sprocket cover clearance
- Optimized low pressure fuel sensor port location for fitment with various aftermarket Intake Manifolds
What's In The Box?
Bundle and Save
Don't forget to pick up your discounted Euro Intake Manifold with purchase of our MPI kit
